Why LED Linear Trunking Sytstem is the best solution for Supermarket Lighting Projects ?
The Professional Supermarket Lighting/Hypermarket Lighting/Shop Lighting/Lighting Stores Manufacturers & Suppliers: Sanli LED had launched a best replacement lighting system for Supermarkets, Hypermarkets: Continuous Row LED Linear Trunking System.
Best Supermarket Lighting Replacement: The continuous row LED linear Lighting is the 2017 advanced LED linear trunking system, it is mainly composed by these parts: Various degree lens Linear Light Modules, different length Trunking Rails and Installation Accessories. (suspension & surface mounted ways).
Best Supermarket Lighting Replacement: Continuous Row LED Linear Lighting
Continuous Row LED Linear Lighting System
Main Features:
Continuous row lighting & without any gap
Lumen efficiency: >130lm/W
Protection rating: IP44
Temperature range: -30°C – +40°C
Service life: up to 50,000 h (L80)
Pre-mounted 5 wires/7 wires/11 wires

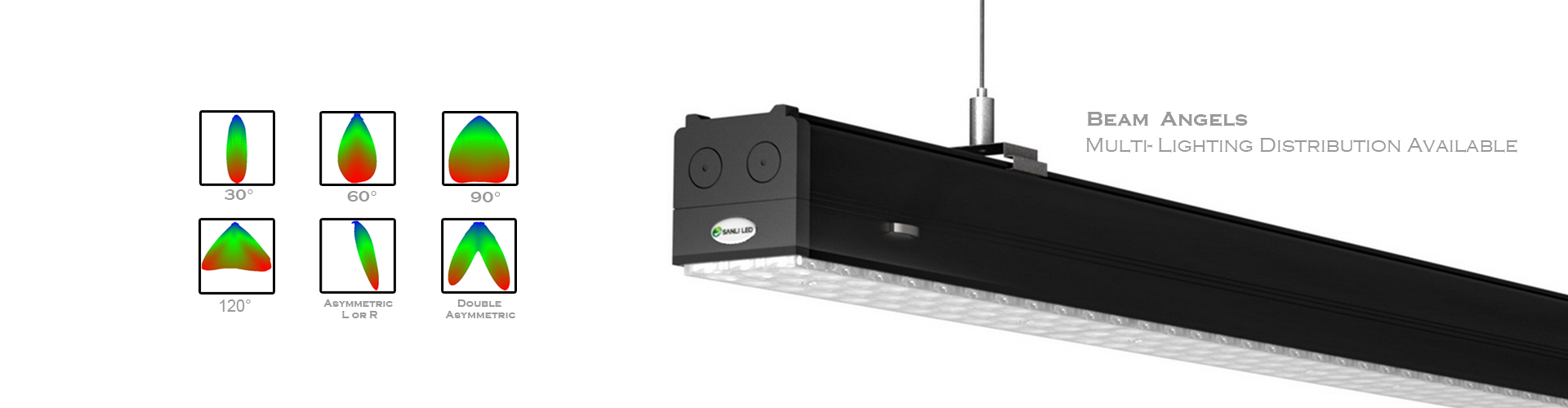

Sharp/ Narrow/ Wide/ Flat/ Asymmetric/ Double Asymmetric degrees optional
Famous brand materials are used: PHILIPS XITANIUM Drivers & LG G5 5630 chips
Housing of strong 6063 aluminum alloy, with black, white and silver finish color for selection
Luminaire Dimension:
| Length | L (mm) | W(mm) | H(mm) | Wt(kg) | Qty/CTN |
| 1.2m | 1150 | 65 | 30 | 2 | 5 |
| 1.5m | 1450 | 65 | 30 | 2.5 | 5 |
Luminaire Parameter:
| Length | Power | LEDs | Lumen | CRI | UGR | Optional |
| 1.2m | 48W | 132pcs | 5200lm | >80/>95 | <16 | Dimming/Emergency/Motion Sensor |
| 1.5m | 48W | 165pcs | 5400lm | >80/>95 | <16 | Dimming/Emergency/Motion Sensor |
| 70W | 165pcs | 9100lm | >80/>95 | <16 | Dimming/Emergency/Motion Sensor |
Benefits from Best Supermarket Lighting Replacement: LED Linear Lighting
No housing needed
Tools free Installation
Saving installation time and labor cost
IES files are available and DIALUX design service
DALI or 1-10V Dimmable, Emergency and Sensor lighting optional
Trust & Reliable . TUV-CE, SAA certificated
7 Years Quality Warranty
Applications:
All Indoor Commercial & Industrial places that need the high lumen and friendly lighting environments.
Such as: Supermarkets, Hypermarkets, Shops, Stores, Shopping malls, Exhibition Centers/Halls ...
Best Supermarket Lighting Replacement: Continuous Row LED Linear Lighting
Certifications for the Continuous Row LED Linear Lighting System
SAA No: GMA-501165. Issued by Australia Global Mark Pty Ltd.
CE- EMC No: AE 50364724 0001, CE- LVD No: AN50364095 0001. Issued by Germany TUV Rheinland.
Company Advantage:
R&D Team
Strong and experienced Research & Design Team. Purchasing the qualitative point of mechanical, thermal, electronic, optical and materials aspects, realize the environmental protection, energy saving, long lifetime of illuminator products
Workshop Manufacturing Capacity
Dust-free workshop, automatic production lines and up-to-date technology, make sure the high efficiency and high quality.
Testing Laboratory
National accredited CNAS test laboratory, can offer authoritative test reports: for example, the IES testing reports, and Lighting optics testing reports.
